Worked examples¶

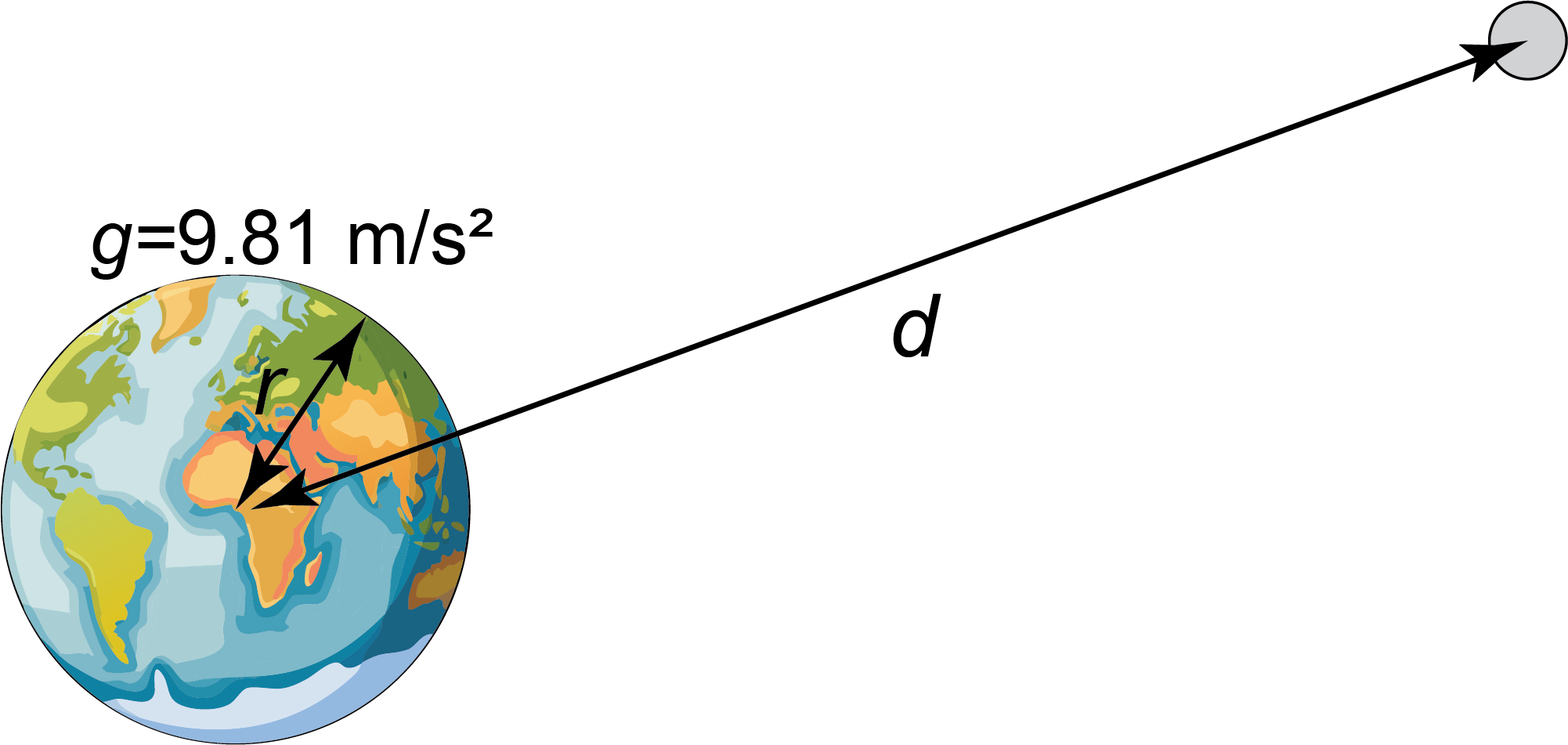

The earth’s gravitational force acting on the moon¶

Given the following:

$r_{earth} = 6.371 \times 10^6 \; \mathrm{m}$
$d_{earth-moon} = 3.844 \times 10^8 \; \mathrm{m}$
$g_{earth} = 9.81 \; \mathrm{m/s^2}$

what is the gravitational acceleration due to the earth’s gravitational force acting on the moon?

Interpret the problem

Develop the solution

Evaluate the solution

Assess the solution

When you stand at the earth, your body is attracted to the center of the earth. This is the same for the moon: it is pulled towards the earth’s center. We know that the gravitational force is inversely proportional to the square of the distance between the two objects.

What we learn from this is that we sometimes don’t need to know the exact formula and all the constants to solve a problem, sometimes ratios are sufficient.

Exercises¶

Exercise 3 (Units based on physical constants ^[1] 🌶 🌶)

In physics, we assume that quantities like the speed of light ( $c$ ) and Newton’s gravitational constant ( $G$ ) have the same value throughout the universe, and are therefore known as physical constants. A third such constant from quantum mechanics is Planck’s constant ( $ℏ$ , $h$ an with a bar). In high-energy physics, people deal with processes that occur at very small length scales, so our regular SI-units like meters and seconds are not very useful. Instead, we can combine the fundamental physical constants into different basis values.

Combine $c$ , $G$ and $ℏ$ into a quantity that has the dimensions of length.
Calculate the numerical value of this length in SI units (this is known as the Planck length).
Similarly, combine $c$ , $G$ and $ℏ$ into a quantity that has the dimensions of energy (indeed, known as the Planck energy) and calculate its numerical value.

Exercise 4 (Reynolds numbers ^[1] 🌶 🌶)

Physicists often use dimensionless quantities to compare the magnitude of two physical quantities. Such numbers have two major advantages over quantities with numbers. First, as dimensionless quantities carry no units, it does not matter which unit system you use, you’ll always get the same value. Second, by comparing quantities, the concepts ‘big’ and ‘small’ are well-defined, unlike for quantities with a dimension (for example, a distance may be small on human scales, but very big for a bacterium). Perhaps the best known example of a dimensionless quantity is the Reynolds number in fluid mechanics, which compares the relative magnitude of inertial and drag forces acting on a moving object:

\mathrm{Re} = \frac{\mathrm{inertial forces}}{\mathrm{drag forces}} = \frac{\rho v L}{\mu}

(1)

where $\rho$ is the density of the fluid (either a liquid or a gas), $v$ the speed of the object, $L$ its size, and $\mu$ the viscosity of the fluid. Typical values of the viscosity are $1.0 \: \mathrm{mPa}\cdot\mathrm{s}$ for water, $50 \:\mathrm{mPa}\cdot\mathrm{s}$ for ketchup, and $1.8 \cdot 10^{-5} \: \mathrm{Pa}\cdot\mathrm{s}$ for air.

Estimate the typical Reynolds number for a duck when flying and when swimming (you may assume that the swimming happens entirely submerged). NB: This will require you looking up or making educated guesses about some properties of these birds in motion. In either case, is the inertial or the drag force dominant?
Estimate the typical Reynolds number for a swimming bacterium. Again indicate which force is dominant.
Oil tankers that want to make port in Rotterdam already put their engines in reverse halfway across the North sea. Explain why they have to do so.
Express the Reynolds number for the flow of water through a (circular) pipe as a function of the diameter $D$ of the pipe, the volumetric flow rate (i.e., volume per second that flows through the pipe) $Q$ , and the kinematic viscosity $\nu \equiv \eta / \rho$ .
For low Reynolds number, fluids will typically exhibit so-called laminar flow, in which the fluid particles all follow paths that nicely align (this is the transparent flow of water from a tap at low flux). For higher Reynolds number, the flow becomes turbulent, with many eddies and vortices (the white-looking flow of water from the tap you observe when increasing the flow rate). The maximum Reynolds number for which the flow in a cylindrical pipe is typically laminar is experimentally measured to be about 2300. Estimate the flow velocity and volumetric flow rate of water from a tap with a $1.0 \: \mathrm{cm}$ diameter in the case that the flow is just laminar.

Exercise 6 (Moving a box 🌶)

A box is on a frictionless incline of 10°. It is pushed upward with a force $F_i$ for $\Delta t = 0.5 \: \mathrm{s}$ . It is then moving upward (inertia) but slows down due to gravity.

Below is a part of the python code. However, some essential elements of the code are missing indicated by (..).

Include the correct code and run it.
Explain the two graphs, highlighting all essential features of the graph by relating these to the given problem.
At what time is the acceleration 0? At what time is the box back at its origin?

The above context is not very realistic as friction is neglected. We, however, can include friction easily as it is given by $\vec{F_w} = \mu \vec{F_N}$ , with $\mu=0.05$ . Note that the direction of friction changes when the direction of the velocity changes!

Extend the code so that friction is included.

Solutions¶

Solution to Exercise 4

The size of a duck is on the order of $30 \: \mathrm{cm}$ . It flies at a speed of about $70 \: \mathrm{km/h}$ , that is $20 \: \mathrm{m/s}$ . Thus we compute for the Reynolds number of a flying duck:

\mathrm{Re} \equiv \frac{\rho v L}{\mu} = 4.0 \cdot 10^5

(12)

Clearly, the inertial force is dominant.

What about a swimming duck? Now the velocity is much smaller: $v \approx 1 \: \mathrm{m/s} = 3.6 \: \mathrm{km/h}$ . The viscosity of water is $\mu_w = 1.0 \: \mathrm{mPa \cdot s}$ and the water density is $1.0 \cdot 10^3 \: \mathrm{kg/m^3}$ . We, again, calculate the Reynolds number:

\mathrm{Re_W} \equiv \frac{\rho v L}{\mu} = 3.0 \cdot 10^5

(13)

Hence, also in this case inertial forces are dominant. This perhaps comes as a surprise, after all the velocity is much smaller and the viscosity much larger. However, the water density is also much larger!

For a swimming bacterium the numbers change. The size is now about $1 \mu\mathrm{m}$ and the velocity $60 \; \mu \mathrm{m/s}$ (numbers taken from internet). That gives:

\mathrm{Re_b} \equiv \frac{\rho v L}{\mu} = 6.0 \cdot 10^{-5}

(14)

and we see that here viscous forces are dominating.

For an oil tanker the Reynolds number is easily on the order of 10⁸. Obviously, viscous forces don’t do much. An oil tanker that wants to slow down cannot do so by just stopping the motors and let the drag force decelerate them: the Reynolds number shows that the viscous drag is negligible compared to the inertial forces. Thus, the tanker has to use ots engines to slow down. Again the inertia of the system is so large, that it will take a long time to slow down. And a long time, means a long trajectory.
For the flow of water through a (circular) pipe the Reynolds number uses as length scale the pipe diameter. We can relate the velocity of the water in the pipe tot the total volume that is flowing per second through a cress section of the pipe:

Q = \frac{\pi}{4} D^2 v \rightarrow v = \frac{4Q}{\pi D^2}

(15)

Thus we can also write $\mathrm{Re}$ as:

\mathrm{Re} \equiv \frac{\rho v D}{\mu} = \frac{4Q}{\pi \frac{mu}{\rho} D^2} = \frac{4Q}{\pi \nu D^2}

(16)

If $\mathrm{Re} = 2300$ for the pipe flow, we have:

\mathrm{Re} = \frac{vD}{\nu} = 2300 \rightarrow v = \frac{2300 \nu}{D}

(17)

with $\nu = 1.0 \cdot 10^{-6} \; \mathrm{m^2/s}$ and $D = 1.0 \cdot 10^{-2} \; \mathrm{m}$ we find: $v = 0.23 \; \mathrm{m/s}$ and $Q = 1.8 \cdot 10^{-5} \; \mathrm{m^3/s} = 0.018 \; \mathrm{liter/s}$ .

Experiments¶

Footnotes¶

Exercise from Idema, T. (2023). Introduction to particle and continuum mechanics. Idema (2023)
↩↩

References¶

Idema, T. (2023). Introduction to particle and continuum mechanics. TU Delft OPEN Publishing. 10.59490/tb.81
