7.1 Exercises, examples & solutions

Updated: 20 Jul 2026

Here are some examples and exercises that deal with collisions.

Worked examples

Particles on a row

Problem description
Develop the solution
Evaluate the problem
Assess the problem

Four point-particles are positioned on the xx-axis as show in the figure. All particles are at rest except for the most left one. This particle has mass 4m4m and is moving at a velocity vv. It will collide with the particle of mass 3m3m. The collision is completely elastic. Subsequently, particle 3m3m will collide completely elastic with particle 2m2m. Finally, particle 2m2m will collide completely elastic with particle mm.

Colliding particles.

The problem is one dimensional.

What is the velocity of particle mm after the collisions?

Newton’s Cradle

Click on the link for an applet on Newton’s cradle (gives you also the possibility to ‘play’ with different numerical solvers, from (too) simple to advanced).

Exercises

Source
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation

class ParticleClass:
    def __init__(self, m, v, r, R):
        self.m = m                  # mass of the particle
        self.v = np.array(v, dtype=float)  # velocity vector
        self.r = np.array(r, dtype=float)  # position vector
        self.R = np.array(R, dtype=float)  # radius of the particle

    def update_position(self, dt):
        self.r += self.v * dt

    def collide_detection(self, other):
        return np.linalg.norm(self.r - other.r) <= (self.R + other.R)

# Simulation parameters
dt = 0.1         # time step
num_steps = 530  # number of time steps

particleA = ParticleClass(m=1.0, v=[1, 0], r=[-2.0, 0.0],R=0.45)
particleB = ParticleClass(m=6.0, v=[-1, 0], r=[2.0, 0.0],R=0.45)

# Create the figure and axis

fig, ax = plt.subplots()

ax.set_xlim(-10, 10)
ax.set_ylim(-10, 10)
ax.set_aspect('equal')
ax.set_title("Particle Animation")
ax.set_xlabel("x")
ax.set_ylabel("y")
dot, = ax.plot([], [], 'ro', markersize=10); # semicolon to suppress output


# Create the particle as a red dot
dotA, = ax.plot([], [], 'ro', markersize=10)
dotB, = ax.plot([], [], 'bo', markersize=10)


# Initialization function for animation
def init():
    dot.set_data([], [])
    return dotA, dotB


# Update function for each frame
def update(frame):
    particleA.update_position(dt)
    particleB.update_position(dt)

    dotA.set_data([particleA.r[0]], [particleA.r[1]])
    dotB.set_data([particleB.r[0]], [particleB.r[1]])

    #collision detection and response
    if particleA.collide_detection(particleB):

        vA, vB, mA, mB, rA, rB = particleA.v, particleB.v, particleA.m, particleB.m, particleA.r, particleB.r
        vA_new = vA - 2 * mB / (mA + mB) * np.dot(vA - vB, rA - rB) / (1e-12+np.linalg.norm(rA - rB))**2 * (rA - rB)
        vB_new = vB - 2 * mA / (mA + mB) * np.dot(vB - vA, rB - rA) / (1e-12+np.linalg.norm(rB - rA))**2 * (rB - rA)
        particleA.v = vA_new
        particleB.v = vB_new


    # wall collision detection and response
    if particleA.r[0]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleA.v[0] = -particleA.v[0]
    if particleA.r[1]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleA.v[1] = -particleA.v[1]

    dot.set_data([particleB.r[0]], [particleB.r[1]])
    if particleB.r[0]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleB.v[0] = -particleB.v[0]
    if particleB.r[1]**2>100: # Check if particle is outside the bounds, np.abs could be used but is slower
        particleB.v[1] = -particleB.v[1]

    return dotA, dotB

# Create animation
ani = FuncAnimation(fig, update, frames=range(200), init_func=init, blit=True, interval=50)

# For Jupyter notebook:
from IPython.display import HTML
HTML(ani.to_jshtml())
Source
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
from math import atan2, degrees
from IPython.display import HTML

# -------------------------------
# Adjustable Parameters
# -------------------------------
m1 = 1   # mass of particle 1
m2 = 6   # mass of particle 2
v1x = 1  # x velocity of particle 1
v1y = 0  # y velocity of particle 1
v2y = 1  # y velocity of particle 2

# -------------------------------
# Constants and Initial Velocities
# -------------------------------
dt = 0.05
t_stop = 10
tcoll = 5
scale = 40

v1 = np.array([v1x, v1y], dtype=float)
v2 = np.array([0, v2y], dtype=float)

# -------------------------------
# Compute Collision Result
# -------------------------------
def compute_collision(m1, m2, v1, v2):
    Vcg = (m1 * v1 + m2 * v2) / (m1 + m2)
    u1 = v1 - Vcg
    u2 = v2 - Vcg

    angle = atan2(u1[1], u1[0])
    R = np.array([[np.cos(angle), np.sin(angle)],
                  [-np.sin(angle), np.cos(angle)]])

    uac1 = R @ u1
    uac2 = R @ u2

    wac2x = ((1 - m1 / m2) * uac2[0] + 2 * m1 / m2 * uac1[0]) / (1 + m1 / m2)
    wac1x = uac2[0] - uac1[0] + wac2x

    wac1 = np.array([wac1x, 0])
    wac2 = np.array([wac2x, 0])

    R_inv = np.linalg.inv(R)
    w1 = R_inv @ wac1 + Vcg
    w2 = R_inv @ wac2 + Vcg

    return w1, w2

w1, w2 = compute_collision(m1, m2, v1, v2)
alpha_1 = round(degrees(atan2(w1[1], w1[0])) / 10) * 10
alpha_2 = round(degrees(atan2(w2[1], w2[0])) / 10) * 10

x1_init = -v1 * (t_stop - tcoll)
x2_init = -v2 * (t_stop - tcoll)

x1_coll = x1_init + v1 * tcoll
x2_coll = x2_init + v2 * tcoll

# -------------------------------
# Set Up Figure
# -------------------------------
fig, ax = plt.subplots(figsize=(6, 6))
ax.set_xlim(-300, 300)
ax.set_ylim(-300, 300)
ax.set_xticklabels([])
ax.set_yticklabels([])
ax.set_aspect('equal')
ax.grid()

p1, = ax.plot([], [], 'ro')
p2, = ax.plot([], [], 'bo')
path1, = ax.plot([], [], 'r--', lw=1)
path2, = ax.plot([], [], 'b--', lw=1)
angle_text = ax.text(0.02, 0.02, '', transform=ax.transAxes)

traj1, traj2 = [], []

# -------------------------------
# Animation Functions
# -------------------------------
def init():
    p1.set_data([], [])
    p2.set_data([], [])
    path1.set_data([], [])
    path2.set_data([], [])
    angle_text.set_text('')
    return p1, p2, path1, path2, angle_text

def update(frame):
    t = frame * dt
    if t < tcoll:
        pos1 = x1_init + v1 * t
        pos2 = x2_init + v2 * t
    else:
        pos1 = x1_coll + w1 * (t - tcoll)
        pos2 = x2_coll + w2 * (t - tcoll)

    traj1.append(pos1.copy())
    traj2.append(pos2.copy())

    p1.set_data([scale * pos1[0]], [scale * pos1[1]])
    p2.set_data([scale * pos2[0]], [scale * pos2[1]])

    traj1_np = np.array(traj1)
    traj2_np = np.array(traj2)

    path1.set_data(scale * traj1_np[:, 0], scale * traj1_np[:, 1])
    path2.set_data(scale * traj2_np[:, 0], scale * traj2_np[:, 1])

    if abs(t - t_stop) < dt:
        angle_text.set_text(f"α₁ = {alpha_1}°, α₂ = {alpha_2}°")

    return p1, p2, path1, path2, angle_text

# -------------------------------
# Create and Display Animation
# -------------------------------
ani = FuncAnimation(fig, update, frames=int(t_stop / dt), init_func=init, blit=True, interval=50)
HTML(ani.to_jshtml())
Source
%pip install ipywidgets
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.animation as animation
from IPython.display import display, HTML, Math
import ipywidgets as widgets

# Constants
m1_init = 1
m2_init = 1
v1x = 1
v1y = 0
v2x = 0
v2y = 1

x1_init = -1
y1_init = 0
x2_init = 0
y2_init = -1

e_init = 1


# Time setup
dt = 0.05
time_max = 1
times_neg = np.arange(-time_max, dt, dt)
times_pos = np.arange(dt, time_max, dt)
times = np.arange(-time_max, time_max, dt)
Ntimes = len(times_neg) + len(times_pos)

# Widget slider mass 1
mass1_slider = widgets.FloatSlider(
    value=1,
    min=1,
    max=5,
    step=1,
    description='m1:',
    continuous_update=False
)

# Widget slider mass 2
mass2_slider = widgets.FloatSlider(
    value=1,
    min=1,
    max=5,
    step=1,
    description='m2:',
    continuous_update=False
)

# Widget slider coeff restitution e
e_slider = widgets.FloatSlider(
    value=0,
    min=0,
    max=1,
    step=0.1,
    description='e:',
    continuous_update=False
)

def CalcCol(m1_init,m2_init,e_init):
    #initiallise m's and v's
    e = e_init
    m1, m2 = m1_init, m2_init
    cos_2 = v2x/np.sqrt(v2x*v2x+v2y*v2y)
    sin_2 = v2y/np.sqrt(v2x*v2x+v2y*v2y)

    # velo center of gravity
    Vcg_x=(m1*v1x+m2*v2x)/(m1+m2)
    Vcg_y=(m1*v1y+m2*v2y)/(m1+m2)
    #relative velos before coll in COG
    u1x=v1x-Vcg_x
    u1y=v1y-Vcg_y
    u2x=v2x-Vcg_x
    u2y=v2y-Vcg_y
    u1=np.sqrt(u1x*u1x+u1y*u1y)
    u2=np.sqrt(u2x*u2x+u2y*u2y)
    cos_1=u1x/u1
    sin_1=u1y/u1
    cos_2=u2x/u2
    sin_2=u2y/u2

	#rotation matrix to rotatate to 1D picture -> particles moving over x-axis
    A11=cos_1
    A12=sin_1
    A21=-sin_1
    A22=cos_1
    uac1x=A11*u1x+A12*u1y
    uac1y=A21*u1x+A22*u1y
    uac2x=A11*u2x+A12*u2y
    uac2y=A21*u2x+A22*u2y

    #new velos: do a 1D inelastic collision
    wac1x=(m1*uac1x+m2*uac2x-e*m2*(uac1x-uac2x))/(m1+m2)
    wac2x=wac1x + e*(uac1x-uac2x)
    wac1y=0
    wac2y=0
    #rotate back
    w1x=A11*wac1x-A12*wac1y
    w1y=-A21*wac1x+A22*wac1y
    w2x=A11*wac2x-A12*wac2y
    w2y=-A21*wac2x+A22*wac2y
    #transform back to lab frame
    vnew1_x=w1x+Vcg_x
    vnew1_y=w1y+Vcg_y
    vnew2_x=w2x+Vcg_x
    vnew2_y=w2y+Vcg_y
    if np.abs(vnew1_x) <0.0001:
        alpha_1 = 90
    else:
        alpha_1 = round(np.arctan(vnew1_y / vnew1_x)/np.pi*180)
    if np.abs(vnew2_x) <0.0001:
        alpha_2 = 90
    else:
        alpha_2 = round(np.arctan(vnew2_y / vnew2_x)/np.pi*180)
    if (vnew1_y>=0 and vnew1_x<0):
        alpha_1 = 180+alpha_1

    print('velocities after collision')
    print('u1_x= ',round(vnew1_x,2),' u1_y= ', round(vnew1_y,2),' u2_x= ', round(vnew2_x,2),' u2_y= ', round(vnew2_y,2))
    print('angles oftrajectories with x-axis after the collision:')
    print('\u03B1_1 = ',round(alpha_1,2),'      \u03B1_2 = ',round(alpha_2,2))

    return vnew1_x, vnew1_y, vnew2_x, vnew2_y, alpha_1, alpha_2

def generate_animation(m1_init,m2_init,e_init):
    x1 = v1x*(-time_max)
    x2 = v2x*(-time_max)
    y1 = v1y*(-time_max)
    y2 = v2y*(-time_max)

    m1, m2 = m1_init, m2_init
    e = e_init

    u1_x, u1_y, u2_x, u2_y, a1, a2 = CalcCol(m1_init,m2_init,e_init)

    # Position history
    x1_list, y1_list = [], []
    x2_list, y2_list = [], []

    for t in times_neg:
        x1_t = v1x * t
        y1_t = v1y * t
        x1_list.append(x1_t)
        y1_list.append(y1_t)
        x2_t = v2x * t
        y2_t = v2y * t
        x2_list.append(x2_t)
        y2_list.append(y2_t)

    for t in times_pos:
        x1_t = u1_x * t
        y1_t = u1_y * t
        x1_list.append(x1_t)
        y1_list.append(y1_t)
        x2_t = u2_x * t
        y2_t = u2_y * t
        x2_list.append(x2_t)
        y2_list.append(y2_t)

    # Create figure and axes
    fig, ax = plt.subplots(figsize=(6, 6))
    ax.set_xlim(-1.1, 1.1)
    ax.set_ylim(-1.1, 1.1)
#    ax.set_yticks([])
    ax.set_title("2D Collision")
    ax.plot([-1.1,1.1],[0,0], color='grey')
    ax.plot([0,0],[-1.1,1.1], color='grey')

    p1, = ax.plot([], [], 'ro', markersize=6, label='Particle 1')
    p2, = ax.plot([], [], 'bo', markersize=6, label='Particle 2')
    p1_line_f, = ax.plot((x1_list[0],x1_list[0]),(y1_list[0],y1_list[0]),'r-')
    p1_line_a, = ax.plot((0,0),(0,0),'r-')
    p2_line_f, = ax.plot((x2_list[0],x2_list[0]),(y2_list[0],y2_list[0]),'b-')
    p2_line_a, = ax.plot((0,0),(0,0),'b-')
    ax.grid()
    ax.legend(loc='upper right')

    def init():
        p1.set_data([], [])
        p2.set_data([], [])
        return p1, p2

    def update(i):
        p1.set_data([x1_list[i]], [y1_list[i]])
        p2.set_data([x2_list[i]], [y2_list[i]])
        if i < len(times_neg):
            p1_line_f.set_data((x1_list[0],x1_list[i]),(y1_list[0],y1_list[i]))
            p2_line_f.set_data((x2_list[0],x2_list[i]),(y2_list[0],y2_list[i]))
        else:
            p1_line_a.set_data((0,x1_list[i]),(0,y1_list[i]))
            p2_line_a.set_data((0,x2_list[i]),(0,y2_list[i]))
        return p1, p2


    ani = animation.FuncAnimation(fig, update, frames=Ntimes, init_func=init,
                                  interval=50, blit=True)

    plt.close(fig)
    return HTML(ani.to_jshtml())

# Show slider and link it to animation
widgets.interact(generate_animation,
    m1_init = mass1_slider, m2_init = mass2_slider, e_init = e_slider
    );

Experiment

Answers

Solution to Exercise 5

Given: the collision is completely inelastic. That means e=0e=0 or in words: after the collision the two particles stick together and move as one particle. Thus, we have only one unknown velocity after the collision.

The problem is 1-dimensional and we can solve it by requiring conservation of momentum:

before               mv+M⋅0=(m+M)U                after⇒U=mm+Mv\begin{align*} \text{before \;\;\;\;\;\;\;} mv &+ M \cdot 0 = (m+M)U \text{ \;\;\;\;\;\;\; after} \\ \Rightarrow U &= \frac{m}{m+M} v \end{align*}
(6)
Solution to Exercise 7

  • 3m3m has velocity −2v-2v and 2m2m has velocity 3v3v

  • Both particles have zero velocity.

  • 3m3m has velocity −2/5v-2/5 v and 2m2m has velocity 3/5v3/5 v.

Solution to Exercise 8
v⃗after=23vx^+13vy^\vec{v}_{after} = \frac{2}{3}v \hat{x} + \frac{1}{3}v \hat{y}
(7)
ΔEkin=−23mv2\Delta E_{kin} = -\frac{2}{3}mv^2
(8)
Solution to Exercise 9

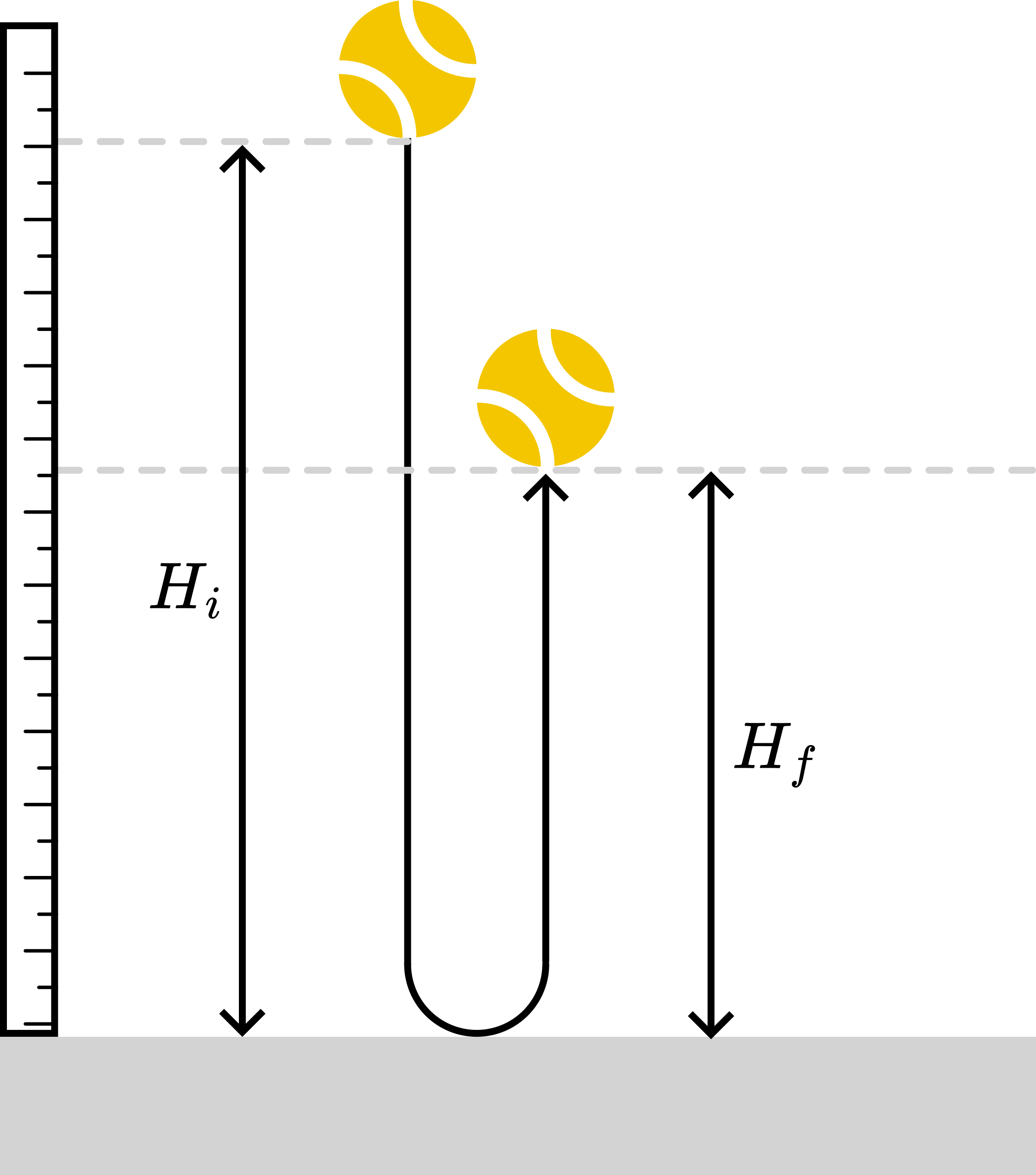

After each bounce, the tennis ball reaches half of the height it had before the bounce. Thus after two bounces, the ball reaches 25 cm and with the third bounce only 12.5 cm.

Solution to Exercise 10

  1. We can consider the shooting as a collision. Bullets don’t bounce back, they penetrate a body. So the victim ‘gains’ maximum momentum if the bullet stays in the body. Then according to conservation of momentum, we have for this inelastic collision:

mbvb+Mv⋅0=(mb+Mv)Um_b v_b + M_v \cdot 0 = \left ( m_b + M_v \right ) U
(9)

Thus the velocity of the victim after being shot is:

U=mbmb+MvvbU = \frac{m_b}{m_b + M_v} v_b
(10)

For the shooter a similar argument holds: before the shot, bullet & shooter have zero momentum. After firing, the bullet has velocity vbv_b. Thus conservation of momentum requires:

0=mbvb+MsUs0 = m_b v_b + M_s U_s
(11)

and we find for the velocity of the shooter:

Us=−mbMsvbU_s = -\frac{m_b}{M_s} v_b
(12)

Conclusion: as the mass of the bullet is negligible compared to that of a person both shooter and victim have similar velocities. As their mass is comparable, it is clear: from a physics point of view, if the victim is blown backward, than also the shooter is.

  1. From the above we get, using mb≈10⋅10−3m_b \approx 10 \cdot 10^{-3} kg, vb≈500v_b \approx 500 m/s and Mv≈70  kgM_v \approx 70 \; \mathrm{kg}:

Uv=mbmb+Mvvb≈7  cm/sU_v = \frac{m_b}{m_b + M_v} v_b \approx 7 \; \mathrm{ cm/s}
(13)

That is much too little to ‘knock’ someone over. Hollywood is good at ‘dramatic effects’, not so good at physics.

Classical Mechanics & Special Relativity for Starters
Collisions
Classical Mechanics & Special Relativity for Starters
Two Body Problem: Kepler revisited
